Cat 320B Excavator
Basic Information of Cat 320B Excavator
- Stock No:
- Make:
- Model Name:
- Place of Origin:
- Year:
- Hours:
- EC20234
- Caterpillar
- 320B
- Japan
- 1999
- 13000
FOB Shanghai Price: $ 16000
Details of Cat 320B Excavator
Cat 320B Excavator | 1999 Model | FOB Only $16,000
Looking for a Cat 320B excavator in excellent condition? We are offering a Cat 320B excavator made in Japan, manufactured in 1998, with only 13,000 hours of working time. This is an original Caterpillar 320B Excavator, featuring the original strong Cat 3066 engine, the original hydraulic pump, and the original paint — no touch-ups or refurbishments.
This Caterpillar 320 excavator is in excellent working condition. The boom is solid and without any cracks, ensuring reliability and durability for your job site needs. It’s currently sitting at a job site and is ready for sale. If you are seeking a dependable Cat 320B excavator for sale, this machine is a top choice.
Priced at FOB Shanghai $16,000, this Cat 320B excavator delivers outstanding value for contractors and operators. Made in Japan, it represents the legendary build quality and performance that Caterpillar is known for. Don’t miss the opportunity to own a premium-quality Caterpillar 320 excavator with verified originality and strong components.
Why Choose This Cat 320B Excavator
-

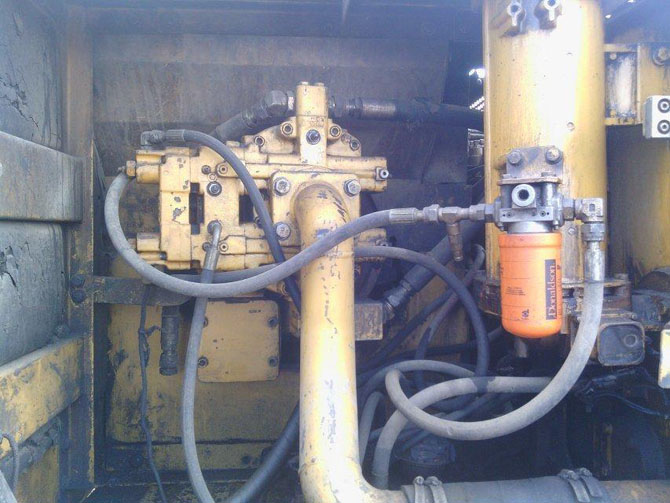

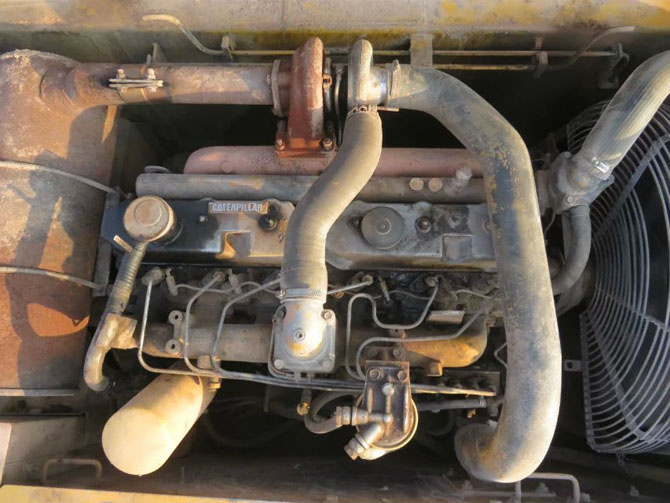

Original Machine: Genuine 1998 Cat 320B excavator made in Japan with original Cat 3066 engine, original hydraulic pump, and original paint.
-
Excellent Condition: Only 13,000 working hours, solid boom with no cracks, machine ready to work immediately.
-
High Value: Priced at $16,000 FOB Shanghai, offering great value for a durable and reliable Caterpillar 320 excavator.
-
Proven Quality: Made in Japan, well-known for superior craftsmanship and long-term performance.
-
Immediate Availability: Currently sitting at a job site, fully operational and ready for sale.
Why Buy Cat 320B Excavator From Us?
-
Experienced Machinery Exporter – Since 2012, Based in Shanghai, we serve global clients with confidence
-
Every Cat 320B Inspected & Tested – Quality guaranteed
-
Fast, Safe Shipping – Direct from Shanghai Port
-
Friendly Support – Prompt answers, smooth transactions
Caterpillar 320B Excavator Specification
| A. Shipping Length of Unit | 30.9 ft in | 9420 mm |
| C. Shipping Height of Unit | 11.3 ft in | 3430 mm |
| I. Max Cutting Height | 32 ft in | 9750 mm |
| J. Max Loading Height | 22.7 ft in | 6930 mm |
| K. Max Reach Along Ground | 34.9 ft in | 10630 mm |
| L. Max Vertical Wall Digging Depth | 22.3 ft in | 6810 mm |
| M. Max Digging Depth | 24.9 ft in | 7580 mm |
| Dimensions | ||
| H. Tail Swing Radius | 9 ft in | 2750 mm |
| O. Counterweight Clearance | 3.4 ft in | 1045 mm |
| Undercarriage | ||
| F. Track Gauge | 7.8 ft in | 2380 mm |
| N. Shoe Size | 31.5 in | 800 mm |
| Specification | ||
| Engine | ||
| Make | Caterpillar | |
| Model | 3066T | |
| Gross Power | 134 hp | 99.9 kw |
| Net Power | 128 hp | 95.4 kw |
| Power Measured @ | 1800 rpm | |
| Displacement | 389 cu in | 6.4 L |
| Aspiration | Turbocharged | |
| Number of Cylinders | 6 | |
| Operational | ||
| Operating Weight | 42769.7 lb | 19400 kg |
| Fuel Capacity | 89.8 gal | 340 L |
| Cooling System Fluid Capacity | 6.6 gal | 25 L |
| Hydrauilc System Fluid Capacity | 58.1 gal | 220 L |
| Engine Oil Capacity | 5.4 gal | 20.5 L |
| Swing Drive Fluid Capacity | 1.6 gal | 6 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 50 amps | |
| Hydraulic System Relief Valve Pressure | 4980 psi | 34335.9 kPa |
| Hydraulic Pump Flow Capacity | 97.7 gal/min | 370 L/min |
| Swing Mechanism | ||
| Swing Torque | 42050 lb ft | 57012.1 Nm |
| Undercarriage | ||
| Shoe Size | 31.5 in | 800 mm |
| Max Travel Speed | 3.4 mph | 5.5 km/h |
| Drawbar Pull | 39800 lb | 177 kN |
| Track Gauge | 7.8 ft in | 2380 mm |
| Buckets | ||
| Reference Bucket Capacity | 1.2 yd3 | 0.92 m3 |
| Minimum Bucket Capacity | 0.45 yd3 | 0.34 m3 |
| Maximum Bucket Capacity | 2 yd3 | 1.5 m3 |
If you’re looking for a durable and dependable Caterpillar 320 excavator , this unit is a smart investment that won’t disappoint.
Send an Inquiry Now.
